Ammico Robotics

Mushiny 3D-Mini Sorter

The 3D-mini sorter is an advanced robotic sorting solution designed to enhance efficiency, flexibility, and scalability. It is primarily used in wave order sorting to consolidate e-commerce orders for small to medium sized goods or parcel sorting for distribution.

The 3D-mini sorting system from Mushiny is designed to be cost-effective, highly reliable, and user-friendly. It is ideal for companies looking to sort parcels at a rate of 1500 PPH with the smallest footprint possible.

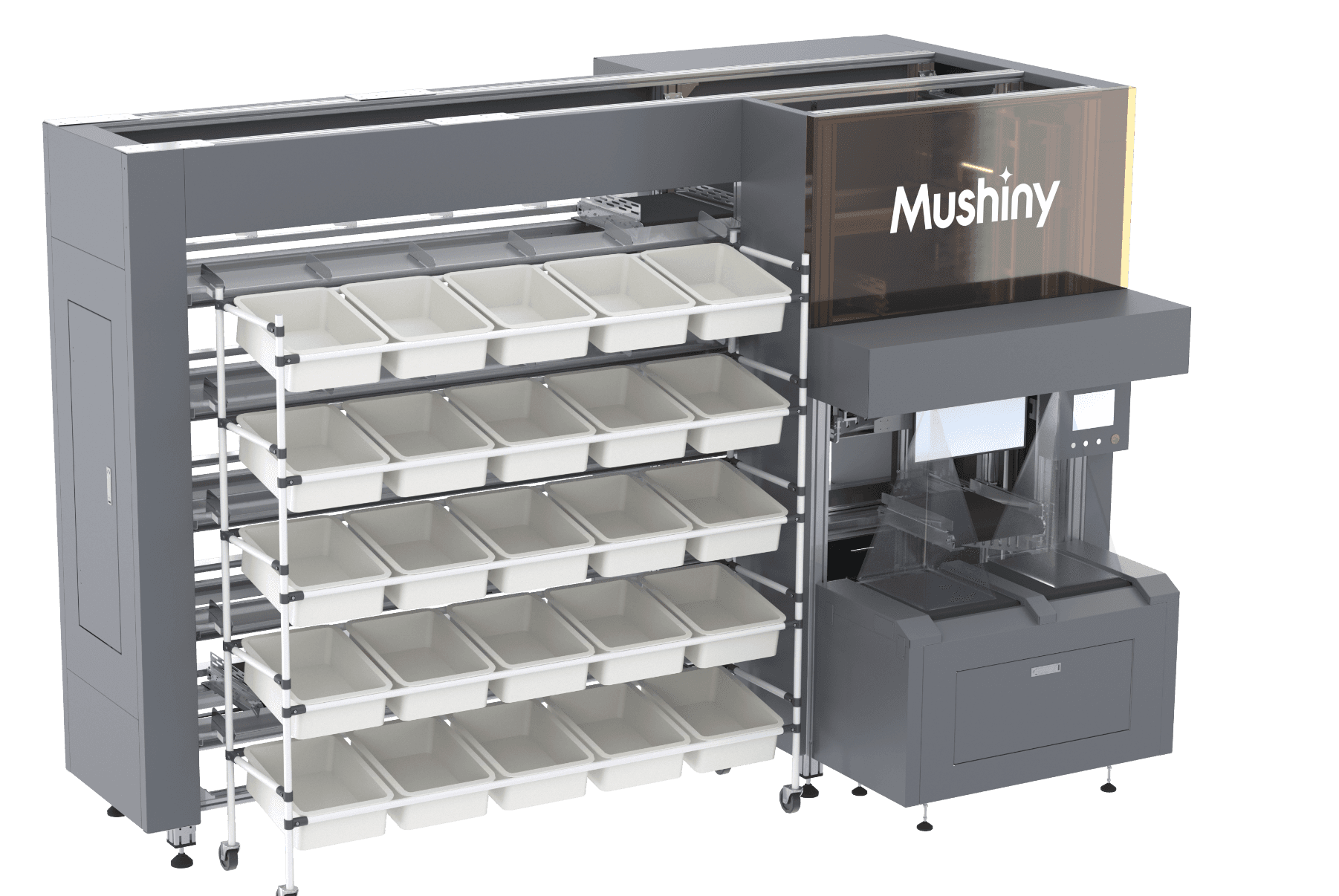

L-Shape

Compact, up to 50 destinations

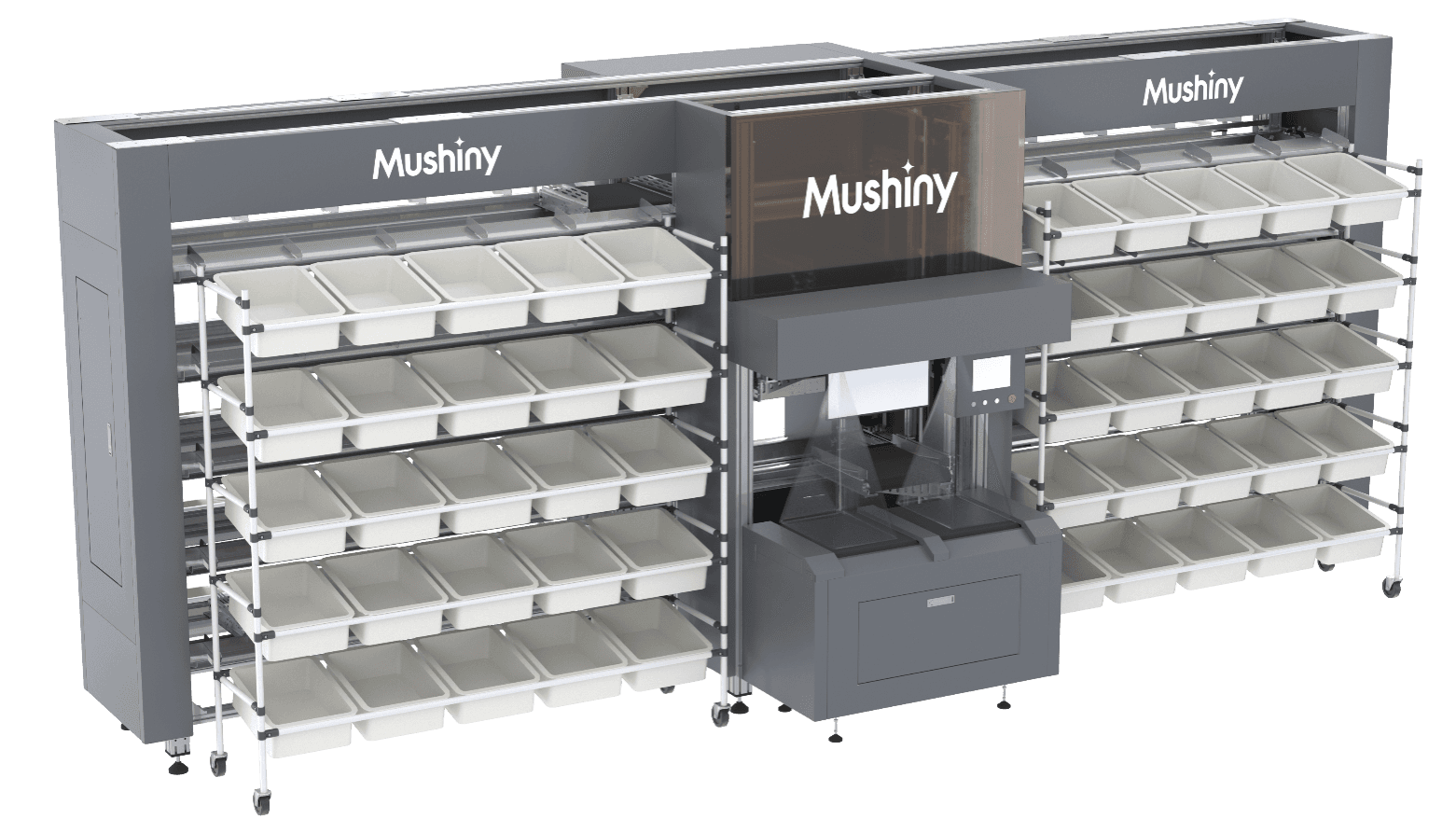

T-Shape

Up to 100 destinations. Ideal if you need more sortation destinations.

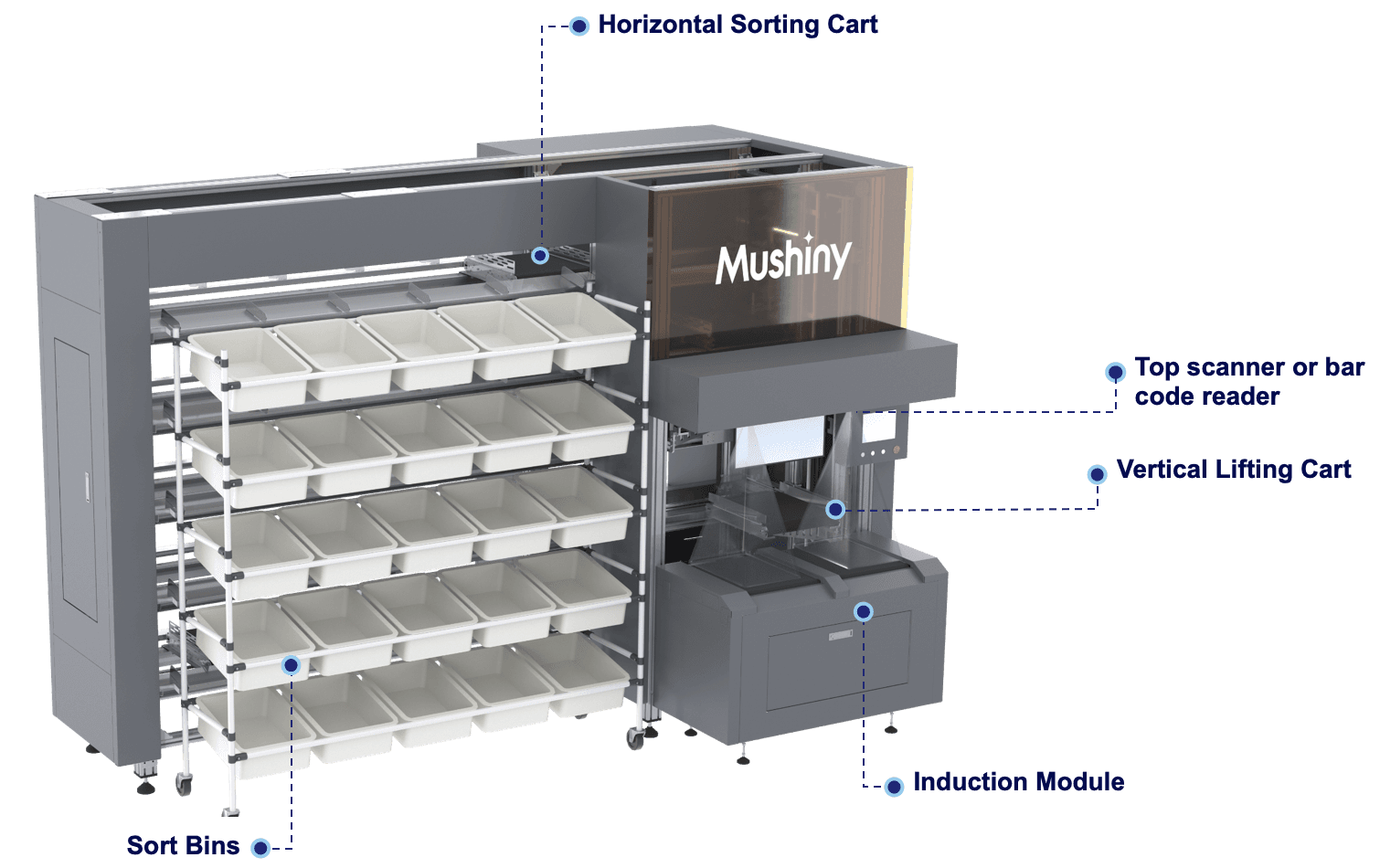

How It Works

Am operator places an item on the system's conveyor. The item barcode is scanned.

A vertical lift carries the item to the level of the tote in which the item is to be placed.

The vertical lift transfers the item to the horizontal shuttle, which moves towards the destination tote.

The horizontal shuttle drops the item into the appropriate tote.

Am operator places an item on the system's conveyor. The item barcode is scanned.

A vertical lift carries the item to the level of the tote in which the item is to be placed.

The vertical lift transfers the item to the horizontal shuttle, which moves towards the destination tote.

The horizontal shuttle drops the item into the appropriate tote.

Technical Details

Sort items up to 10kg in weight

Up to 100 chute destinations

Small footprint

Sort 1500 parcels per hour

Sort items up to 10kg in weight

Up to 100 chute destinations

Small footprint

Sort 1500 parcels per hour

Key Benefits

Small Footprint

The compact 3D design ensures your warehouse space is optimally used. The system is ideal for smaller and medium warehouses.

High Efficiency

The 3D mini-sorter effectively improves sorting efficiency, sorting up to 1500 PPH. When batch picking, the sorter can boost picking efficiency by over 200% and sorting efficiency by more than 300%.

High Accuracy

The 3D mini-sorter accurately places items in the correct bin, reducing the number of human-made errors.

Cost-Effective, High ROI

The compact, stand-alone system allows you to boost efficiency and increase sortation speed at a low cost.

Customizable Destinations & Tote Sizes

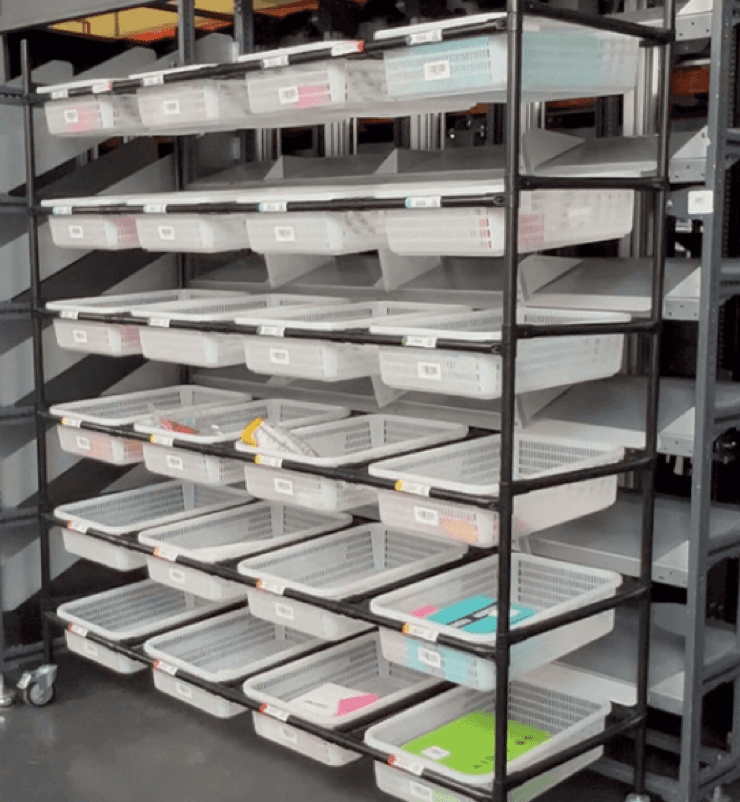

The size, quantity, and material of chutes can be customized. Larger totes can be used for store distribution and parcel sorting. Small totes can be used for individual customer order consolidation.

Industries

E-commerce & Retail

Postal & Courier

3PL

Grocery

Medicine

E-commerce & Retail

Postal & Courier

3PL

Books

Medicine

Use Cases

Multi-line Order Fulfillment

Return Sortation

Storage & Retrieval

Replenishment
